Estimated Time: 20-25 minutes

Connect directly to a bot

Communication directly with your bot may be required in some situations. For example, you may want to perform functional tests with a hosted bot. Communication between your bot and your own client application can be performed using the Direct Line API.

Additionally, sometimes you may want to use other channels or customize your bot further. In that case, you can use Direct Line to communicate with your custom bots.

Microsoft Bot Framework Direct Line bots are bots that can function with a custom client of your own design. Direct Line bots are similar to normal bots. They just don’t need to use the provided channels. Direct Line clients can be written to be whatever you want them to be. You can write an Android client, an iOS client, or even a console-based client application.

This hands-on lab introduces key concepts related to Direct Line API.

Lab 2.1: Setting up the Direct Line channel

In the portal, locate your published PictureBot and navigate to the “Channels” tab. Select the Direct Line icon (looks like a globe). You should see a “Default Site”. Click “Show” and store one of the secret keys in Notepad, or wherever you are keeping track of your keys. While you’re in the portal, it’s a good idea to also note the name of your bot, or “botId”.

You can read detailed instructions on enabling the Direct Line channel and secrets and tokens.

Lab 2.2: Create a console application

Open your published PictureBot solution in Visual Studio. We’ll create a console application to help us understand how Direct Line can allow us to connect directly to a bot.

The console client application we will create operates in two threads. The primary thread accepts user input and sends messages to the bot. The secondary thread polls the bot once per second to retrieve any messages from the bot, then displays the messages received.

Note: The instructions and code here have been modified from the best practices in the documentation.

Step 1 - Create the console project

Right-click on the solution in Solution Explorer, then select Add > New Project. Under Visual C# > Windows Classic Desktop, createa new Console App (.NET Framework) titled “PictureBotDL” and select OK.

Step 2 - Add NuGet packages to PictureBotDL

Right-click on the PictureBotDL project and select Manage NuGet Packages. Within the “Browse” tab (and with “include prerelease” checked), search and install/update “Microsoft.Bot.Connector.DirectLine” and “Newtonsoft.Json”.

Step 3 Update Program.cs

Replace the contents of Program.cs (within PictureBotDL) with the following:

using System;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.Bot.Connector.DirectLine;
using Newtonsoft.Json;

namespace PictureBotDL
{
    class Program
    {
        // ************
        // Replace the following values with your Direct Line secret and the name of your bot resource ID.
        //*************
        private static string directLineSecret = "YourDLSecret";
        private static string botId = "YourBotServiceName";

        // This gives a name to the bot user.
        private static string fromUser = "PictureBotSampleUser";

        static void Main(string[] args)
        {
            StartBotConversation().Wait();
        }


        /// <summary>
        /// Drives the user's conversation with the bot.
        /// </summary>
        /// <returns></returns>
        private static async Task StartBotConversation()
        {
            // Create a new Direct Line client.
            DirectLineClient client = new DirectLineClient(directLineSecret);

            // Start the conversation.
            var conversation = await client.Conversations.StartConversationAsync();

            // Start the bot message reader in a separate thread.
            new System.Threading.Thread(async () => await ReadBotMessagesAsync(client, conversation.ConversationId)).Start();

            // Prompt the user to start talking to the bot.
            Console.Write("Conversation ID: " + conversation.ConversationId + Environment.NewLine);
            Console.Write("Type your message (or \"exit\" to end): ");

            // Loop until the user chooses to exit this loop.
            while (true)
            {
                // Accept the input from the user.
                string input = Console.ReadLine().Trim();

                // Check to see if the user wants to exit.
                if (input.ToLower() == "exit")
                {
                    // Exit the app if the user requests it.
                    break;
                }
                else
                {
                    if (input.Length > 0)
                    {
                        // Create a message activity with the text the user entered.
                        Activity userMessage = new Activity
                        {
                            From = new ChannelAccount(fromUser),
                            Text = input,
                            Type = ActivityTypes.Message
                        };

                        // Send the message activity to the bot.
                        await client.Conversations.PostActivityAsync(conversation.ConversationId, userMessage);
                    }
                }
            }
        }


        /// <summary>
        /// Polls the bot continuously and retrieves messages sent by the bot to the client.
        /// </summary>
        /// <param name="client">The Direct Line client.</param>
        /// <param name="conversationId">The conversation ID.</param>
        /// <returns></returns>
        private static async Task ReadBotMessagesAsync(DirectLineClient client, string conversationId)
        {
            string watermark = null;

            // Poll the bot for replies once per second.
            while (true)
            {
                // Retrieve the activity set from the bot.
                var activitySet = await client.Conversations.GetActivitiesAsync(conversationId, watermark);
                watermark = activitySet?.Watermark;

                // Extract the activies sent from our bot.
                var activities = from x in activitySet.Activities
                                 where x.From.Id == botId
                                 select x;

                // Analyze each activity in the activity set.
                foreach (Activity activity in activities)
                {
                    // Display the text of the activity.
                    Console.WriteLine(activity.Text);

                    // Are there any attachments?
                    if (activity.Attachments != null)
                    {
                        // Extract each attachment from the activity.
                        foreach (Attachment attachment in activity.Attachments)
                        {
                            switch (attachment.ContentType)
                            {
                                // Display a hero card.
                                case "application/vnd.microsoft.card.hero":
                                    RenderHeroCard(attachment);
                                    break;

                                // Display the image in a browser.
                                case "image/png":
                                    Console.WriteLine($"Opening the requested image '{attachment.ContentUrl}'");
                                    Process.Start(attachment.ContentUrl);
                                    break;
                            }
                        }
                    }

                }

                // Wait for one second before polling the bot again.
                await Task.Delay(TimeSpan.FromSeconds(1)).ConfigureAwait(false);
            }
        }


        /// <summary>
        /// Displays the hero card on the console.
        /// </summary>
        /// <param name="attachment">The attachment that contains the hero card.</param>
        private static void RenderHeroCard(Attachment attachment)
        {
            const int Width = 70;
            // Function to center a string between asterisks.
            Func<string, string> contentLine = (content) => string.Format($"0}", string.Format("{0," + ((Width + content.Length) / 2).ToString() + "}", content));

            // Extract the hero card data.
            var heroCard = JsonConvert.DeserializeObject<HeroCard>(attachment.Content.ToString());

            // Display the hero card.
            if (heroCard != null)
            {
                Console.WriteLine("/{0}", new string('*', Width + 1));
                Console.WriteLine("*{0}*", contentLine(heroCard.Title));
                Console.WriteLine("*{0}*", new string(' ', Width));
                Console.WriteLine("*{0}*", contentLine(heroCard.Text));
                Console.WriteLine("{0}/", new string('*', Width + 1));
            }
        }
    }
}

Note: this code was slightly modified from the documentation to include a few things we’ll use in the next lab sections.

Don’t forget to add your Direct Line information to the top!

Spend some time reviewing this sample code. It’s a good exercise to make sure you understand how we’re connecting to our PictureBot and getting responses.

Step 4 - Run the app

Right-click on the PictureBotDL project and select “Set as Startup Project”. Next, run the app and have a conversation with the bot.

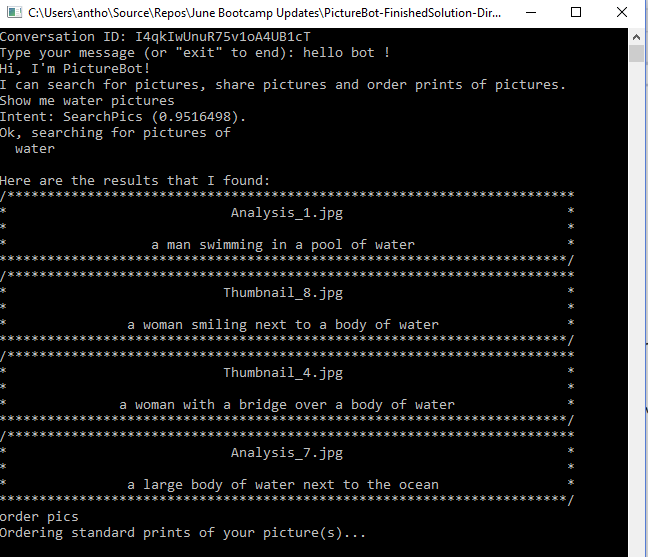

Console App

Quick quiz - how are we displaying the Conversation ID? We’ll see in the next sections why we might want this.

Lab 2.3: Using HTTP Get to retrieve messages

Because we have the conversation ID, we can retrieve user and bot messages using HTTP Get. If you are familiar and experienced with Rest Clients, feel free to use your tool of choice.

In this lab, we will go through using Postman (a web-based client) to retrieve messages.

Step 1 - Download Postman

Download the native app for your platform. You may need to create a simple account.

Step 2

Using Direct Line API, a client can send messages to your bot by issuing HTTP Post requests. A client can receive messages from your bot either via WebSocket stream or by issuing HTTP GET requests. In this lab, we will explore HTTP Get option to receive messages.

We’ll be making a GET request. We also need to make sure the header contains our header name (Authorization) and header value (Bearer YourDirectLineSecret). Addtionally, we’ll make the call to our existing conversation in the console app, by replaceing {conversationId} with our current Conversation ID in our request: https://directline.botframework.com/api/conversations/{conversationId}/messages.

Postman makes this very easy for us to configure:

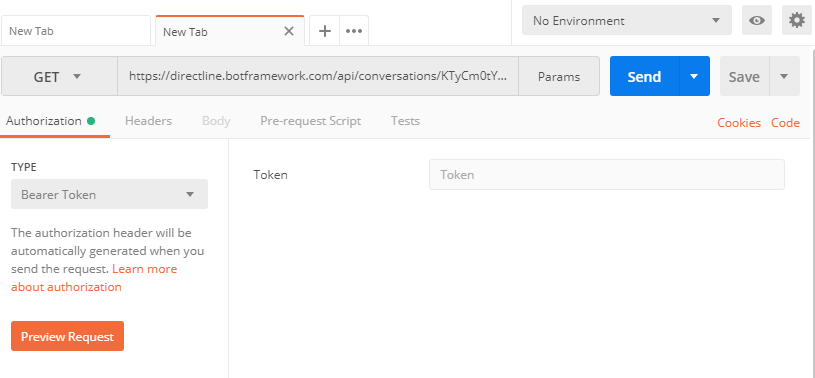

Bearer Token

Finally, select send. Inspect your results. Create a new conversation with your console app and be sure to search for pictures. Create a new request using Postman. You will find the image url displayed within the images array.

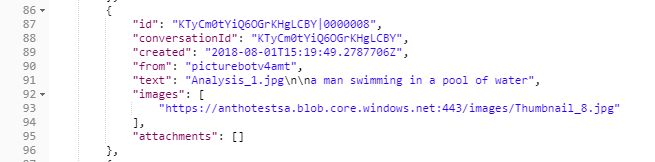

Images Array Example

Challenge

Have extra time? Can you leverage curl (download link: https://curl.haxx.se/download.html) from the terminal to retrieve conversations (like you did for Postman)?

Hint: your command may look similar to curl -H "Authorization:Bearer {SecretKey}" https://directline.botframework.com/api/conversations/{conversationId}/messages -XGET
